Floorplan - 2015 Lifestyle Luxury RV Lifestyle LS36FW
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 40
+40- Our Price: $54,900
Payments From:
$446 /mo.
-
39ft long
-
14,454 lbs
-
Sleeps 4
-
2 slides
-
Rear Living AreaKitchen Island

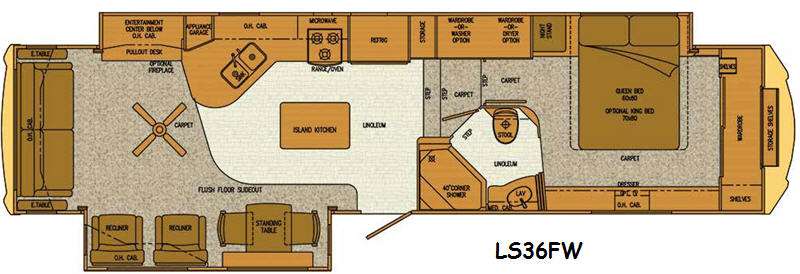

LS36FW Floorplan
LS36FW Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 2 |
| Length | 38 ft 10 in | Ext Width | 8 ft 5 in |
| Ext Height | 13 ft | Interior Color | Boulevard, Cape Town, Granite |
| Exterior Color | Std., Cream, Partial Pearl, To | Hitch Weight | 2964 lbs |
| Dry Weight | 14454 lbs | Cargo Capacity | 2511 lbs |
| Fresh Water Capacity | 87 gals | Grey Water Capacity | 72 gals |
| Black Water Capacity | 38 gals | Tire Size | 16" |
| Furnace BTU | 40000 btu | VIN | 586llf825f2495580 |
Description
Description
This Lifestyle Luxury fifth wheel model LS36FW features a full wall slide, a rear living area, plus optional fireplace and king size bed!
As you enter you will notice right away how spacious it feels with the full wall slide extended. There is a slide out to the left of the main entry door which features a dining table and two recliners. There are also overhead cabinets for storage.
Along the rear wall enjoy the seating provided with a sofa including end tables, and more storage to keep things neat and organized.
The full wall slide opposite the door side begins in the living area with a pull-out desk and entertainment center with overhead cabinets and an optional fireplace.
The kitchen area is continued along the full slide and features an angled counter with double sink, appliances garage, three burner range, overhead microwave, and refrigerator. There is also additional storage for dishes and things, plus a handy kitchen island.
Head up the steps to a side aisle bath which features an angled shower, toilet, sink and dual entry doors. Across the hall and the first entrance you will see a wardrobe or optional washer and dryer space in the slide out. The second entry door slides open and leads directly into the front bedroom.
When you enter the bedroom from the hall you will see the queen or optional king size bed along with one nightstand just inside the doorway. Opposite the bed find a dresser with overhead storage, and an optional TV. There is a full wall wardrobe in the front that provides storage shelves on each end and along the back of the wardrobe, plus so much more!
Features
Features
Standard Features (2015)
STANDARD PACKAGES
STANDARD PACKAGES
Quadra BigFoot Package
- Four Individual Jacks and Cylinders
- Fully Automatic Controls
- 17,000 lb Capacity on each Front Jack
- 12,000 lb Capacity on each Rear Jack
- One Pump/Motor and Reservoir per Cylinder
- Solid Steel Rams and Steel Cylinders
- 10"x10" Foot Pads
- Lifetime Cylinder Warranty
Lifestyle Package
- LED HD TV
- FM/CD/DVD 5.1 Home Theatre System with Subwoofer
- Corian® Countertops in Kitchen and Bathroom
- 40,000 BTU Furnace
- Quiet Performa-Cool A/C System with a 15,000 BTU A/C
- Frameless Windows
- Heavy Duty Steel Slam Latches on Baggage Doors
- Residential Owens Corning® Insulation
- Full Extension Ball Bearing Drawer Guides with Soft Close Feature
- Two Zone LED Lighting with Dimmer Switches
- Ceiling Fan in Living Room
- Full Height Ceilings in Front Bedroom
- MCD Roller Shades Throughout
- Hi-Gloss Gel Coat Fiberglass
- Free-Standing Dinette Table with Hidden Leaf
- Dinette Chairs with Storage (2)
- Folding Dinette Chairs (2)
- Ultra Deck Mattress Foundation with
- Gas Struts and Under the Bed Storage
- 60"x80" Queen Bed Pillow-Top Denver Mattress
- 2nd Satellite Prep to Bedroom
- Cherry Hardwood Cabinetry
- Hidden Hinges on Cabinets
- Exterior E-Center prep in basement
Luxury Package
- Goodyear® Tires
- 4-Step Entry
- Heavy Duty ½" Greaseable Shackles
- Dexter E-Z Lube® 7,000 lb Axles with 2" Brakes
- MOR/ryde® SRE 4000 Rubber Equalizer Suspension System
- LED Exterior Running Lights
- Mid-Ship Turn Signals
- H-Seal “Squeegee” Enclosure Wipes
- Rear Exterior Pass-Through Storage
- Carefree Travel’r Electric Adjustable Pitch Vinyl Awning
- TPO Hybrid Roof with ½" Plywood
- 50 Amp Service
- Universal Docking Station
- Spare Tire with Crank Up Mount
- Hide-A-Bed Sofa
- Stainless Steel Sink with Deep Bowl
- 30" Stainless Steel OTR Microwave
- Norcold 8 cu ft Refrigerator
- 2nd A/C Prep
- 5⁄8" Tongue & Groove Plywood Flooring
- Washer/Dryer Prep
- Battery Disconnect
- 12 Gallon Water Heater
STANDARDS / OPTIONS
EXTERIOR
EXTERIOR
Standard Features
-
Frameless Windows with Safety Glass & GL20 Solar Tinted Glass
-
Hung Fiberglass Sidewalls: High-Gloss Gel Coat
-
Goodyear® Tires with 16" Aluminum Wheels
-
4-Step Entry
-
Heavy Duty ½" Greaseable Shackles
-
Dexter E-Z Lube® 7,000 lb Axles
-
MOR/ryde® SRE 4,000 Rubber Equalizer Suspension System
-
LED Exterior Running Lights
-
Mid-Ship Turn Signals
-
H-Seal “Squeegee” Enclosure Wipes
-
TPO Hybrid Roof with ½" Plywood Roof Decking
-
Rear Exterior Pass-Through Storage
-
Carefree Travel’r Electric Adjustable Pitch Vinyl Awning
-
Molded Fiberglass Front & Rear Caps: High Gloss Gel Coat
-
Heavy Duty Steel Slam Latches on Baggage Doors
-
Entry Step Lights
-
2 Security Lights at Front Corners with Separate Interior Switches
-
Color Coordinated Fenders and Skirting
-
Exterior E-Center: 110V outlet with Cable/Antenna prep
-
Exterior Compartments are Lined with Felt
-
Main Exterior Storage Floor is lined with easy to clean Beaufloor®
-
Lights in All Exterior Storage Compartments
-
One-piece Roof Ladder
-
Heavy Duty Leaf Springs
-
Heavy Duty Four Wheel Electric Brakes (2" x 12")
-
Spare Tire Crank with Extension Arm
-
Battery Disconnect
-
Large Battery Compartment holds up to 3 Group-24 Batteries
-
2nd A/C Prep
-
Whole House Water Filter System
-
Front Cap Paint (Rest of Unit will be 3M Breathable Vinyl Graphics as on Standard Unit)
-
LED Light Strip Under Awning
-
Exterior Door Fold-Away Grab Handle
Optional Features
-
Full Body Paint & Clear Coat Finish
-
Partial Body Paint - Pearl
-
Cream Exterior, Cream Colored Gel Coat w/painted front and back caps
-
Dual Pane Frameless Windows (Slide out endwall windows open)
-
2nd Carefree Electric Adjustable Pitch Vinyl Awning (Floorplans Applicable)
-
Main Awning Upgrade: Acrylic with Uniguard Cover
-
2nd Awning & Upgrade: Acrylic with Uniguard Cover (Floorplan Applicable)
-
Large fold away Grab Handle at Entry Door
-
TV for outside Entertainment Center
-
Entrance Screen/Storm Door
SYSTEMS / FANS
Standard Features
-
Quadra BIGFOOT One-Touch Fully Automatic Hydraulic Leveling System
-
Flex-Foil Thermal Insulation Package
-
Quiet Performa-Cool A/C System with a 15,000 BTU A/C
-
40,000 BTU furnace
-
Fully enclosed, heated, and insulated holding tanks with valves and an insulated heat duct
-
Full Systems Monitor Panel
-
Universal Docking Center: gravity fill, water hookups, satellite and cable connections, two 110V outlets, coil sprayer hose, pump switch and light
-
Washer/dryer prep
-
12 gallon gas/electric DSI water heater
-
Two 30 lb. tanks with auto change over
-
50 amp service with marine power cord
-
AC/DC 70 amp power converter
-
Front Storage underneath Gooseneck with easy access double door
Optional Features
-
15,000 BTU Bedroom A/C
-
Heat Pumps to Main A/C
-
Heat Pumps to Bedroom A/C
-
Atwood Tankless Water Heater
-
Keyless Entry with Key Fob on Entrance Door
-
Fan-Tastic Fan with Wall Switch (Kitchen, Bath, Bedroom)
-
Fan-Tastic Fan with Thermostat and Rain Sensor (Kitchen, Bath, Bedroom)
-
Splendide® Combo Washer/Dryer (select floorplans)
-
Splendide® Ariston™ 2 piece Washer/Dryer (select floorplans)
-
Generator Prep with auto-change over
-
Onan® 5.5 LP Marquis Gold™ Generator
-
40 lb. LP Tanks
CHASSIS / CONSTRUCTION
Standard Features
-
Double stacked box steel tube frame designed and constructed in-house
-
Two, 2" x 6" (12" stacked) steel tube chassis
-
Steel Integrated Bath and Bedroom Floor
-
Heavy Gauge Welded Aluminum Superstructure
-
5" Aluminum Trussed one-piece Roof with 16" Centers or Less
-
16" On Center or Less Sidewalls with Welded Tubular Aluminum Cage Construction
-
5‑8" Exterior Grade Tongue and Groove Plywood Floor Decking
-
½" Plywood Roof Decking
-
Owens Corning Fiberglass Insulation in Roof, Walls, Floor & Caps. (Includes Slide out Floors)
-
2¼" Fully Insulated Slide out Floors
Optional Features
-
MOR/ryde® Rubber Pinbox
-
Raise Axles for 4-Wheel Drive Truck
-
Dexter 8,000 lb. Axles & Disk Brakes
-
Nev-R-Lube™ Axles
-
2" Rear Hitch Receiver with Skid Bars
-
Goodyear® G-Range Tires with 16" Wheels (Including Spare)
-
Goodyear® H-Range Tires with 17½" Wheels (Including Spare)
-
TRC® Electric Marine Cord Reel for rear off-door side compartment
-
MOR/ryde Independent Suspension in Chassis with Dexter (2) 8000lb Axle & Disc Brakes
LIVING ROOM
Standard Features
-
Cherry Hardwood Doors, Drawers & Cabinets
-
Free-Standing Cherry Hardwood End Table
-
Cherry Hardwood Interior Hallway Steps with Carpet Runner
-
Cherry Hardwood Slide out Fascia
-
Full Extension Ball Bearing Drawer Guides with Soft Close Feature
-
Hidden Hinges on Cabinets
-
2 Luxury Recliners
-
80” Luxury Hide-A-Bed Sofa in Rear of Living Room
-
Cherry Hardwood Window Trim
-
Residential Window Treatments
-
MCD Roller Shades
-
Pull-Out Desk at Entertainment Center
-
Two Zone LED Lighting with Dimmer Switches
-
Ceiling Fan in Living Room
-
Residential Nylon Carpet with Stain Protection and Rebond Carpet Pad
-
Hallway Step Light with Wall Mounted Switch
-
Interior Entrance Cherry Hardwood Grab Handle
Optional Features
-
Dyson Vacuum
-
Central Vacuum
-
Fireplace
-
MCD American Duo® Day-Night Shades
-
Fabric Recliners
-
Fabric Sofa
ENTERTAINMENT
Standard Features
-
LED HD TV
-
FM/CD/DVD 5.1 Home Theatre System with Subwoofer
-
Winegard® TV Antenna with Power Booster and Signal Meter
-
Satellite Prep with RG-6 Cable (Docking Center to Living Room & Docking Center to Bedroom)
-
Cable TV
Optional Features
- 50" LED TV
- Blu-Ray Player
BATHROOM
Standard Features
-
Heat & A/C Ducts
-
Corian® Countertop with Undermount Sink
-
1-piece Fiberglass Shower
-
Brushed Nickel One-Lever Faucet
-
Water Shut-Off Valves at Toilet and Sink
-
12V Power Vent
-
Removable Handheld Brushed Nickel Shower Head
KITCHEN / APPLIANCES
Standard Features
-
Corian® Countertops and Backsplash
-
Recessed Stainless Steel Range/Oven with Corian® flush mount insert and hidden stowing compartment
-
Dual Stainless Steel Sinks
-
Corian® flush mount inserts for sinks
-
Water Shut-Off Valves at Kitchen Sink in all floor plans
-
Residential Brushed Nickel One-Lever Faucet with Sprayer
-
Norcold 12 cu ft 4-door Refrigerator
-
30" Stainless Steel Microwave OTR with light and power exhaust fan to exterior
-
Free-Standing Dinette Table with Hidden Leaf
-
Dinette Chairs with Storage (2)
-
Kitchen Island Cabinet with Corian Countertop (standard where available)
-
Folding Dinette Chairs (2)
Optional Features
-
RESIDENTIAL REFRIGERATOR PACKAGE
-
20 cu ft Samsung Stainless Platinum Refrigerator, Freezer and Ice Maker with Travel Locks
-
2000 watt Pure-Sine Inverter with a 55 amp Charger
-
Three (3) Deka® AGM Group-24 Batteries
-
-
Norcold 12 cu ft 4-Door Refrigerator with Ice Maker
-
Premium Vinyl Plank Flooring
-
Sharp® Stainless Steel Convection Microwave (vented to exterior)
-
Fisher & Paykel Dishwasher
-
Atwood Tankless Water Heater
-
Premium Vinyl Plank Flooring Throughout Living Room
BEDROOM
Standard Features
-
Mirrored Wardrobe Doors Framed in Cherry Hardwood
-
60" x 80" Queen Bed Denver Pillow-Top Mattress
-
European Style Mattress Foundation with Gas Struts and Under Bed Storage
-
Residential Comforter with Pillows
-
Residential Headboard with Nailhead Trim
-
V-Grooved Glass Privacy Door with Shade
-
Full Height Ceilings in Front Bedroom
-
2nd Satellite Prep
Optional Features
-
King Bed Denver Pillow-Top (n/a LS32FW)
-
29” LCD HD TV in bedroom
See us for a complete list of features and available options.
All standard features and specifications are subject to change.
