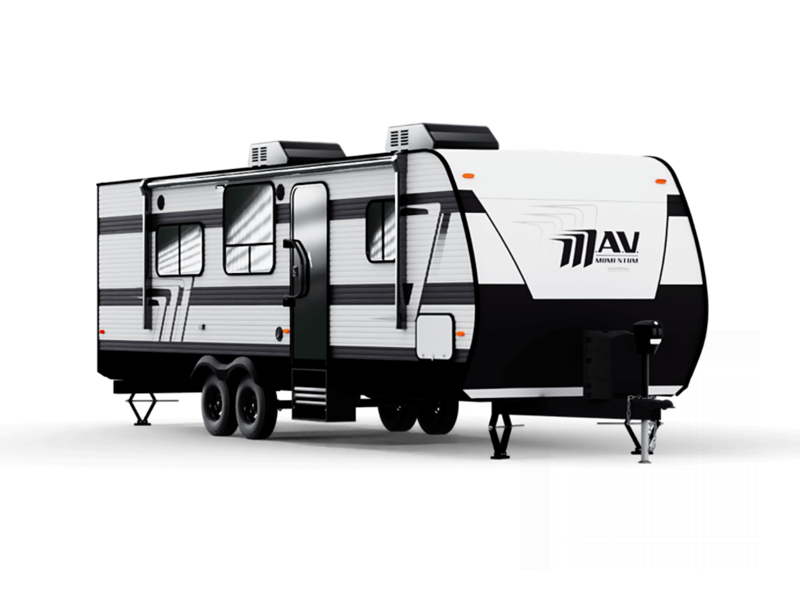

The Grand Design Momentum MAV toy hauler travel trailers and fifth wheels offer a great combination of living space and room for your toys!



Each toy hauler is built to a superior standard with a double insulated roof on the travel trailers and a durable worry-free roof on the fifth wheels. The solar power outside will provide off grid capabilities, and the heated and enclosed underbelly with suspended tanks will add protection against the elements. Keep all of your toys and gear secure using the 2,500 lb. tie-downs anchored into the chassis and easily unload with the DoveTail loading ramp. You'll be met with many interior comforts as well, including solid wood drawer fronts, motion sensor lights in key areas, and LED lights.



Take a look at the Momentum MAV toy hauler travel trailers and fifth wheels by Grand Design if you're ready for some great adventures!

  • Momentum MAV 17MAV

    Momentum MAV 17MAV Floorplan Image

    Take a Virtual Tour

    Grand Design Momentum MAV toy hauler 17MAV highlights: Universal Docking Station ... more about Momentum MAV 17MAV

    Specifications

    Sleeps 2
    Length 22 ft 11 in
    Ext Width 8 ft 4 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Hitch Weight 873 lbs
    GVWR 9950 lbs
    Dry Weight 5542 lbs
    Fresh Water Capacity 90 gals
    Grey Water Capacity 74 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 30000 btu
    Available Beds Queen Murphy
    Refrigerator Type 12V
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 27" x 36"
    Number of Awnings 1
    Garage Size 11 ft 6 in
    LP Tank Capacity 20 lbs
    Water Heater Type Tankless
    AC BTU 15000 btu
    Awning Info 13' Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Solar Wattage 200 watts

    Similar Floorplans

  • Momentum MAV 27MAV

    Momentum MAV 27MAV Floorplan Image

    Take a Virtual Tour

    Grand Design Momentum MAV toy hauler travel trailer 27MAV highlights: Front ... more about Momentum MAV 27MAV

    Specifications

    Sleeps 6
    Length 32 ft 2 in
    Ext Width 8 ft 4 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Hitch Weight 1187 lbs
    GVWR 11000 lbs
    Dry Weight 6900 lbs
    Fresh Water Capacity 90 gals
    Grey Water Capacity 74 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    Garage Size 13 ft 6 in
    LP Tank Capacity 20 gals
    Water Heater Type Tankless
    AC BTU 15000 btu
    Awning Info 19' Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 50 amp
    Solar Wattage 200 watts

    Similar Floorplans

  • Momentum MAV 28MAV

    Momentum MAV 28MAV Floorplan Image

    Take a Virtual Tour

    Grand Design Momentum MAV toy hauler travel trailer 28MAV highlights: Queen Bed ... more about Momentum MAV 28MAV

    Specifications

    Sleeps 8
    Slides 1
    Length 33 ft 11 in
    Ext Width 8 ft 4 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Hitch Weight 1200 lbs
    GVWR 11000 lbs
    Dry Weight 8300 lbs
    Fresh Water Capacity 90 gals
    Grey Water Capacity 74 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 27" x 36"
    Number of Awnings 1
    Garage Size 10 ft 5 in
    LP Tank Capacity 20 gals
    Water Heater Type On Demand
    AC BTU 15000 btu
    Awning Info 19' Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 50 amp
    Solar Wattage 200 watts

    Similar Floorplans

  • Momentum MAV 30MAV

    Momentum MAV 30MAV Floorplan Image

    Take a Virtual Tour

    Grand Design Momentum MAV toy hauler travel trailer 30MAV highlights: 11' ... more about Momentum MAV 30MAV

    Specifications

    Sleeps 7
    Slides 1
    Length 36 ft 11 in
    Ext Width 8 ft 4 in
    Ext Height 12 ft 2 in
    Int Height 0 ft
    Hitch Weight 1400 lbs
    GVWR 12000 lbs
    Dry Weight 8400 lbs
    Fresh Water Capacity 90 gals
    Grey Water Capacity 74 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Garage Size 11 ft
    LP Tank Capacity 20 gals
    Water Heater Type On Demand
    AC BTU 15000 btu
    Awning Info 19' Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 50 amp
    Solar Wattage 200 watts

    Similar Floorplans

  • Momentum MAV 22MAV

    Momentum MAV 22MAV Floorplan Image

    Take a Virtual Tour

    Grand Design Momentum MAV toy hauler 22MAV highlights: Three Burner Range Ramp ... more about Momentum MAV 22MAV

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 26 ft 6 in
    Ext Width 8 ft 4 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Hitch Weight 943 lbs
    GVWR 9950 lbs
    Dry Weight 5900 lbs
    Fresh Water Capacity 90 gals
    Grey Water Capacity 74 gals
    Black Water Capacity 37 gals
    Tire Size ST225/75R15LRE
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Queen Murphy
    Refrigerator Type 12V
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 24" x 32"
    Number of Awnings 1
    Garage Size 13 ft 6 in
    LP Tank Capacity 20 lbs
    Water Heater Type Tankless
    AC BTU 15000 btu
    Awning Info 17' Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Solar Wattage 200 watts

    Similar Floorplans

  • Momentum MAV 24MAV

    Momentum MAV 24MAV Floorplan Image

    Take a Virtual Tour

    Grand Design Momentum MAV toy hauler 24MAV highlights: Garage Pull Down Screen ... more about Momentum MAV 24MAV

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Length 29 ft 11 in
    Ext Width 8 ft 4 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Hitch Weight 1200 lbs
    GVWR 11000 lbs
    Dry Weight 6650 lbs
    Fresh Water Capacity 90 gals
    Grey Water Capacity 74 gals
    Black Water Capacity 37 gals
    Tire Size 15"
    Furnace BTU 30000 btu
    Available Beds Queen Murphy
    Refrigerator Type 12V
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 27" x 36"
    Number of Awnings 1
    Garage Size 18 ft
    LP Tank Capacity 20 lbs
    Water Heater Type Tankless
    AC BTU 15000 btu
    Awning Info 17' Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 50 amp
    Solar Wattage 200 watts

    Similar Floorplans

Momentum MAV Features:

Standard Features (2027)



PLEASE NOTE: Features and options separated by type below

-----------------------------------------------------

TRAVEL TRAILERS

Kitchen

  • Deep-Seated Stainless-Steel Sink

Appliance

  • 12V 8 Cu. Ft. Refer

 HVAC

  • 15K Main AC Ducted
  • 30K BTU Furnace
  • Attic Vent
  • EvenFlow Ductless Heating Throughout

Garage

  • 24" DoveTail Loading Ramp
  • Patio System
  • Loading Lights
  • E-Z Lift Bunk Bed (N/A 17MAV & 24MAV, & 28MAV)
  • Garage Pull Down Screen

Exterior

  • Power Tongue Jack
  • Solar Power Inlet
  • 20# LP Bottles (2) with Cover
  • Friction Hinge Entry Door
  • Battery Kill Switch (Pass Thru)
  • Oversized Tank Capacities
  • Walk-on Roof
  • Easy Access Low Point Drain Valves
  • Main Floor Insulation (R-11)
  • Undermount Spare Tire
  • Magnetic Storage Door Catches
  • Extended Grab Handle
  • Power Awning
  • Power Tongue Jack
  • Dual 20#LP Tanks w/ Cover
  • All in One Utility Center
  • LP Quick Connect

 Construction

  • TPO Roof Membrane w/ Limited Lifetime Warranty
  • Insulated Storage Doors
  • Side Walls Insulation (R-9)
  • Slideroom Roof and End Wall Insulation (R-9)
  • Roof Insulation (R-40)
  • Tinted Windows
  • TV Prep with Backer
  • Heated & Enclosed Underbelly w/Suspended Tanks
  • Dedicated Heat Duct to Subfloor
  • Hi-Density Roof Insulation w/Thermofoil
  • Moisture Barrier Floor Enclosure
  • No Wheel Wells in Garage

Bathroom

  • Foot Flush Toilet

Bedroom

  • 60 x 80 Queen Bed (N/A 22MAV)
  • Gas Strut Lift Bed Storage (27MAV & 28MAV)

Plumbing

  • High-Capacity Water Pump
  • Extra Large 2" Fresh Water Drain Valve
  • 90 Gal. Fresh Water Capacity
  • Black Tank Flush
  • High Rise Faucet
  • On Demand Water Heater
  • Easy Winterization

Electrical

  • Motion Sensor Lights in Key Areas
  • Detachable 50amp Power Cord (N/A 17MAV & 22MAV)
  • Battery Disconnect Switch
  • HD TV Antenna

Interior

  • Large Solid Bedroom Door (27MAV)
  • Cable/Sat Prep
  • Walk-in Shower
  • Power Vent Fan in Bath and Living Area
  • Medicine Cabinet with Mirror
  • ABS Tub Surround
  • Solid Hardwood Drawer Fronts
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Residential Countertops
  • Microwave
  • 3-Burner Range
  • USB Ports (2)
  • Upgraded Residential Furniture
  • More Power Outlets
  • 84" Interior Height
  • LED Interior Lights

Packages

Luxury Interior Package

  • 12V 8 cu. ft. Refrigerator
  • Microwave
  • 3-Burner Range
  • 15K Main AC Ducted
  • 84" Interior Height
  • 60 x 80 Queen Bed (N/A 22MAV)
  • 90 Gal. Fresh Water Capacity
  • Undermount Spare Tire
  • Black Tank Flush
  • Magnetic Storage Door Catches
  • Foot Flush Toilet
  • Extended Grab Handle
  • Gas Strut Lift Bed Storage (27MAV & 28MAV)
  • Tinted Windows
  • High Rise Faucet
  • Solid Wood Drawer Fronts
  • On Demand Water Heater
  • Deep-Seated Stainless-Steel Sink
  • TV Prep with Backer
  • LED Interior Lights
  • Motion Sensor Lights in Key Areas
  • 30K BTU Furnace
  • Radial Tires

Exterior Package

  • Power Awning
  • Detachable 50AMP Power Cord (N/A 17MAV & 22MAV)
  • Battery Disconnect Switch
  • HD TV Antenna
  • Power Tongue Jack
  • Heated & Enclosed Underbelly w/ Suspended Tanks
  • Dedicated Heat Duct to Subfloor
  • High Density Roof Insulation w/ Thermofoil
  • Moisture Barrier Floor Enclosure
  • Attic Vent
  • Dual 20lb LP Tanks with Cover
  • EvenFlow Ductless Heating Throughout
  • Easy Winterization
  • All in One Utility Center
  • LP Quick Connect

Garage / Cargo Package

  • 24" Dovetail Loading Ramp
  • 2,500 lbs. Tie-downs Anchored into Chassis
  • Patio System
  • Loading Lights
  • No Wheel Wells in Garage
  • E-Z Lift Bunk Bed (N/A 17MAV, 24MAV, & 28MAV)
  • Garage Pull Down Screen

Solar Package

  • 200W Solar Panel
  • 30 Amp Charge Controller with Bluetooth
  • Battery Monitor
  • 12V Refrigerator

Rockford Fosgate Audio Package

  • Bluetooth / MP3 / AM / FM / Receiver
  • 2 - Internal RF Punch Series Speakers
  • 2 - External RF Marine Punch Series Speakers

-----------------------------------------------------------------------------

FIFTH WHEELS

Standard Features Coming Soon

Packages

Exterior Package

  • Large Power Awning on Door Side
  • Detachable 50amp Power Cord
  • Backup Camera Prep
  • Battery Disconnect Switch
  • HD TV Antenna
  • Starlink Prep
  • Auto Leveling
  • Heated & Enclosed Underbelly w/Suspended Tanks
  • Dedicated Heat Duct to Subfloor
  • Hi- Density Roof Insulation
  • Moisture Barrier Floor Enclosure
  • Attic Vent
  • Dual 30#LP Tanks
  • EvenFlow Ductless Heating Throughout,
  • All in One Utility Center
  • LP Quick Connect
  • Upgraded G-Range Tires w/TPMS Prep
  • Drop Generator Pass-Thru Storage

Garage/Cargo Package

  • 24" DoveTail Loading Ramp
  • 2,500lbs Tie Downs Anchored into Chassis
  • Patio System
  • Hidden Hinge Zero G Weather Proof Ramp Door
  • Loading Lights
  • Garage Camera Prep
  • Push Button Lift Bed
  • Garage Pull Down Screen
  • Rear Awning Prep

Luxury Interior Package

  • Large Dedicated Pantry Storage
  • Dedicated Pull-out Trash Can
  • 12V 8 Cu. Ft. Refer
  • 30" OTR Microwave
  • 3 Burner Cut-in Cooktop
  • Ducted H-Track AC System w/3 AC's
  • 140 Gal. Fresh Water Capacity
  • Undermount Spare Tire
  • Black Tank Flush
  • Magnetic Storage Door Catches
  • Foot Flush Toilet
  • MoRryde Safe-T Handles on Exterior Entry
  • 72x80 King Bed
  • Gas Strut Lift Bed Storage w/Hanger & Shelving
  • Combo Washer/Dryer Prep
  • Large Nightstands w/110V and USB Plugs
  • Tinted Windows
  • High Rise Faucet
  • Solid Wood Drawer Fronts
  • 2.4 GPM tankless water heater
  • Deep Seated Stainless Steel Sink
  • 65" TCL Smart TV
  • LED Interior Lights
  • Motion Sensor Lights in Key Areas
  • 30K BTU Furnace

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Grand Design Logo
In 2012, we started with a blank canvas to pursue that better way, a different way, than what had been done before. A company whose culture requires a long-term, personal connection with our customers, employees, and dealers – that company is Grand Design RV. Our business model of doing the right thing has led us to unparalleled years of growth.

Our local workforce has been hand-picked and has an excellent reputation for second-to-none industry craftsmanship, and our CEO and Senior Management actively work with the production facilities to help build the team and develop products.

At Grand Design we've raised the quality bar by putting every unit through a series of quality inspection gates during the manufacturing process. Once completed, the unit undergoes a comprehensive “final finish” inspection. Every one of our coaches is shipped to a PDI (Pre-Delivery Inspection) area where they are put through a rigorous 300+ point inspection checklist before being shipped to our dealers.  And, we back every one of our coaches with a 3-year limited structural warranty.

At Grand Design our goal is simple – continue leading the industry with quality products while improving the customer’s RV experience before, during and after the sale. We strive for nothing less than customers for life and we would be honored to personally welcome you to the Grand Design RV family!
