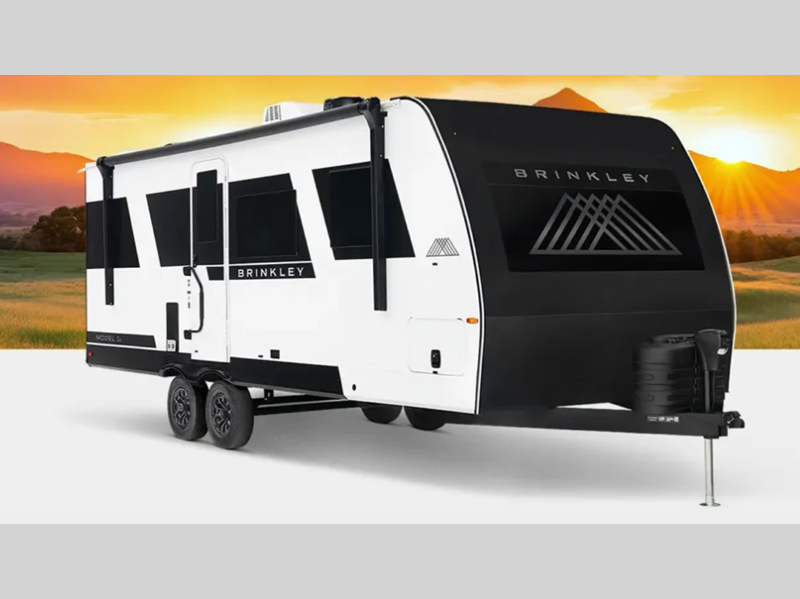

Brinkley Model Ix Travel Trailer RVs For Sale
Brinkley introduces the new Model Ix premium half-ton towable travel trailer to their lineup! You'll enjoy a residential interior thanks to Brinkley's CraftSense building techniques, plus a Road Armor suspension for an overall better towing experience!
There is a straight frame chassis with 8" I-beams for a solid foundation, along with square Euro frameless windows featuring integrated blackout shades with reflective insulation. You will also appreciate the industry-first low-maintenance roof for added convenience. Inside, there are premium residential drawers with dovetail joints, a one-piece fiberglass shower with marine-grade neon LED lighting, and dimmable living room lights to name a few comforts.
Start a new adventure in a Model Ix travel trailer by Brinkley!
-
Model Ix 20x
Brinkley Model Ix travel trailer 20x highlights: Front Hidden Bed System ... more about Model Ix 20x
Specifications
Sleeps 2 Slides 1 Length 23 ft 11 in Ext Width 8 ft Ext Height 10 ft 11 in Int Height 6 ft 6 in Hitch Weight 549 lbs GVWR 7395 lbs Dry Weight 5791 lbs Fresh Water Capacity 46 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size 205/75R14 Furnace BTU 30000 btu Available Beds Murphy Bed Refrigerator Type 12V Refrigerator Size 10.7 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 30" Number of Awnings 1 Axle Weight 3500 lbs LP Tank Capacity 20 lbs Water Heater Type Tankless On Demand AC BTU 18000 btu TV Info LR 40" Smart TV Awning Info 16' Electric w/LED Lighting Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 30 amp Solar Wattage 200 watts Similar Floorplans
-
Model Ix 23x
Brinkley Model Ix travel trailer 23x highlights: Front Semi-Private Bedroom ... more about Model Ix 23x
Specifications
Sleeps 2 Slides 1 Length 26 ft 11 in Ext Width 8 ft Ext Height 10 ft 11 in Int Height 6 ft 6 in Hitch Weight 591 lbs GVWR 7495 lbs Dry Weight 5991 lbs Fresh Water Capacity 46 gals Grey Water Capacity 45 gals Black Water Capacity 45 gals Tire Size 205/75R14 Furnace BTU 30000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10.7 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 30" Number of Awnings 1 Axle Weight 3500 lbs LP Tank Capacity 20 lbs Water Heater Type Tankless On Demand AC BTU 18000 btu TV Info LR 40" Smart TV Awning Info 17' Electric w/LED Lighting Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 30 amp Solar Wattage 200 watts Similar Floorplans
-
Model Ix 24x
Brinkley Model Ix travel trailer 24x highlights: Front Private Bedroom Bunk Beds ... more about Model Ix 24x
Specifications
Sleeps 6 Slides 1 Length 29 ft 11 in Ext Width 8 ft Ext Height 11 ft 1 in Int Height 6 ft 6 in Hitch Weight 654 lbs GVWR 8495 lbs Dry Weight 6891 lbs Fresh Water Capacity 46 gals Grey Water Capacity 80 gals Black Water Capacity 44 gals Tire Size 225/75R15 Furnace BTU 30000 btu Number Of Bunks 2 Available Beds Queen Refrigerator Type 12V Refrigerator Size 10.7 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 30" Number of Awnings 1 Axle Weight 4400 lbs LP Tank Capacity 20 lbs Water Heater Type Tankless On Demand AC BTU 18000 btu TV Info LR 40" Smart TV Awning Info 17' Electric w/LED Lighting Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 50 amp Solar Wattage 200 watts Similar Floorplans
-
Model Ix 25x
Brinkley Model Ix travel trailer 25x highlights: Walk-Thru Bath Dual Entry Doors ... more about Model Ix 25x
Specifications
Sleeps 4 Slides 1 Length 29 ft 11 in Ext Width 8 ft Ext Height 11 ft 1 in Int Height 6 ft 6 in Hitch Weight 671 lbs GVWR 8495 lbs Dry Weight 6888 lbs Fresh Water Capacity 46 gals Grey Water Capacity 74 gals Black Water Capacity 44 gals Tire Size 225/75R15 Furnace BTU 30000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10.7 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 30" Number of Awnings 1 Axle Weight 4400 lbs LP Tank Capacity 20 lbs Water Heater Type Tankless On Demand AC BTU 18000 btu TV Info LR 40" Smart TV Awning Info 17' Electric w/LED Lighting Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 50 amp Solar Wattage 200 watts Similar Floorplans
-
Model Ix 26x
Brinkley Model Ix travel trailer 26x highlights: Walk-Thru Bath Baggage ... more about Model Ix 26x
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Slides 1 Length 29 ft 11 in Ext Width 8 ft Ext Height 11 ft 1 in Int Height 6 ft 6 in Hitch Weight 672 lbs GVWR 8995 lbs Dry Weight 6986 lbs Fresh Water Capacity 46 gals Grey Water Capacity 79 gals Black Water Capacity 44 gals Tire Size 225/75R15 Furnace BTU 30000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10.7 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 30" Number of Awnings 1 Axle Weight 4400 lbs LP Tank Capacity 20 lbs Water Heater Type Tankless On Demand AC BTU 18000 btu TV Info LR 40" Smart TV Awning Info 17' Electric w/LED Lighting Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 50 amp Solar Wattage 200 watts Similar Floorplans
Take a Virtual Tour
Model Ix Features:
Standard Features (2027)
Chassis & Suspension
- Straight Frame Chassis w/ 8" I-Beams (Brinkley Spec & Certified)
- Road Defense Triple Powder Coated Chassis
- Premium Hankook Vantra 205/75 Load Range D 8-Ply Tires (20x, 23x)
- Premium Hankook Vantra 225/75 Load Range E 10-Ply Tires (24x, 25x, 26x)
- 14" Custom Aluminum Luxury Wheels (20x, 23x)
- 15" Custom Aluminum Luxury Wheels (24x, 25x, 26x)
- Galvanized Wheel Well Shields for Road Debris
- Drum Brakes
- Power Tongue Jack w/ LED Illumination
- 4-Point Manual Stabilizer Jack System (Electric Jack Prep)
- High-Performance Road Armor™ Suspension Equalizer System
- Heavy Duty 3,500 lb. Axles (20x, 23x)
- Heavy Duty 4,400 lb. Axles (24x, 25x, 26x)
- Reinforced Axle Hangers
- Demco EZ Latch Trailer Coupler
- Upgraded 6' Coiled Breakaway Safety Cable
- 2" Rear Cargo Receiver Hitch (300 lb. Capacity)
- Pet & Property Security Campside Tie-Down
Exterior & Storage
- Square Euro Frameless Windows w/ Up To 6" Openings
- Automotive Painted Fiberglass Front Cap
- Automotive-Grade Exterior Graphics
- TuffCoat Protective Epoxy on Front Cap
- Extended Front Rock Guard Protective Shield
- Front Dotless COB Neon LED Docking Lights
- Electric Awning w/ LED Lighting
- Slide-Out Topper Ready
- Backup/Security Furrion Camera Prep
- Winegard Air 360 HDTV/UHF/VHF/AM/FM Antenna
- Mega Front Pass-Through Storage Compartment with:
- Full-Width LED Strip Lighting
- Two 110V Power Outlets
- Forced-Air Heating & Insulation
- Tough-Ply Floor
- Thick Bulkhead Walls for Mounting/Securing Items
- Rear Storage Compartment w/ Motion Lighting & 110V Power Outlets, Heated & Insulated (24x only)
- Slam Latch Baggage Doors
- Exterior Ladder w/ Secure Transition
- Exterior Campside 110V Power Outlets
- 12-Volt Campside Refrigerator
- 40" Campside TV w/ Articulating Flip n' Shift Mount (26x only)
- Deluxe Entrance Package:
- 28" x 72" Entry Door w/ Window & Shade
- Lightweight Solid Entry Steps
- Child/Pet Defender Screen Protector
- Large Folding Entry Grab Handle
- 26" x 72" Campside Second Entry Door (24x, 25x, 26x)
- Lightweight Solid Entry Steps for Second Entry (24x, 25x, 26x)
Solar, Electric & HVAC
- 200 Watt Solar Panel (440 Watt Ready)
- 30-Amp Victron MPPT Solar Controller (440 Watt Solar & Lithium Ready)
- Inverter Prep (Up To 3000W)
- 18K BTU Furrion Chill Cube Variable Speed Air Conditioner w/ Heat Pump
- 2nd Air Conditioner Prep in Bedroom (24x, 25x, 26x)
- Brinkley Smart-Command™ Center w/ App Control
- Thermaflex® No Kink No Tear Heat Ducts
- Travel, Storage & Solar Mode Battery Disconnects
- Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled & Color Coded
- 30K BTU High-Capacity Furnace
- 30-Amp Electric Service (20x, 23x)
- 50-Amp Electric Service (24x, 25x, 26x)
- Detachable 30-Amp Power Cord w/ Angled Connector (20x, 23x)
- Detachable 50-Amp Power Cord w/ Angled Connector (24x, 25x, 26x)
Plumbing & LP
- Brass Plumbing Fittings
- Water Shutoff Valve on All Fixtures
- Extended Waste Hose Carrier Storage Tube
- Clear "No Surprises" Sewer Cap w/ Lanyard
- Brinkley On-Command™ Docking & Utility Center
- EZ Winterization Valve in Utility Center
- Hot/Cold Exterior Spray Port
- Tankless On-Demand Water Heater
- Two 20 lb. LP/Propane Tanks w/ Cover
- LP-IQ Propane Gauge
- Exterior LP Quick Connect
Interior & Living Spaces
- Brinkley CraftSense™ Wood Trim Construction
- 69" Slide-Out Height
- Slide-In Access to Refrigerator, Bathroom & Bedroom
- Window Integrated Blackout Shades w/ Reflective Insulation + Full Bug Screens
- Dimmable Living Room Lights
- 40" Smart TV w/ Articulating Mount
- Soundcore Boom Bluetooth Portable Waterproof Speaker w/ Travel Bracket
- 62" Wall Hugger Theater Seating w/ Two Recliners
- 60" Roll Over Sofa w/ End Tables/Nightstands (20x only)
- Well-Placed 110V Power Outlets w/ USB & USB-C High-Speed Charging Stations
- Floor-to-Ceiling Entry Closet w/ Hanging Storage & Drawers (23x only)
- Wall Coat Hooks
- Entry Storage Shelves & Shoe Rack (26x only)
- Pet-Friendly Package:
- 100% Carpet Free
- Limited Floor Ducts
- Exterior Pet & Property Security Tie-Down
- Child/Pet Defender Screen Protector
Kitchen & Dining
- Premium Residential Drawers w/ Dovetail Joints
- Residential Solid Surface Kitchen Countertops
- Pull-Out Dining Table w/ Utensil + Two Drawers, Two Positions (20x, 23x, 24x, 25x)
- U-Shaped Sleeper Dinette (82" x 54") w/ Two Large Storage Drawers (26x only)
- Two Folding Chairs w/ Storage Bag
- Pull-Out Trash Bin w/ Utility Storage
- Stow 'n Go™ Paper Towel Caddy
- Magnetic Cabinet & Drawer Catches
- Dishwasher Prep (Water & 110V Power Outlet)
- Large Pantry w/ Pull-Out Drawers & 110V Appliance Power Outlets
- 10.7 cu. ft. Energy Efficient 12-Volt Refrigerator
- 3-Burner Stovetop
- Residential 30" Convection Microwave Oven
- Large Farmhouse Stainless Steel Sink w/ Tuff Coat & Roller Cover
- Maxxair Fan w/ Rain Sensor
Bathroom
- Marine Grade Dotless COB Neon LED Shower Lighting
- Space Saving Bathroom Pocket Door(s) (20x, 23x, 25x, 26x)
- Stainless Steel Sink w/ Tuff Coat
- Glass Sliding Shower Door
- One-Piece 36" x 30" Molded Fiberglass Shower
- Residential Shower System w/ Head & Handheld Sprayers
- Overhead Shower Cove
- Floor-to-Ceiling Linen Cubbies (24x, 25x, 26x)
- Porcelain Toilet
- Medicine Cabinet (24x, 25x, 26x)
- Maxxair Fan w/ Rain Sensor
Bedroom
- Queen Bed w/ Residential 7" Memory Foam Mattress (60" x 80") (23x, 24x, 25x, 26x)
- Brinkley Feather-Lift™ Hidden Bed System (20x only)
- Queen Bed w/ Residential 7" Feather Topper Mattress (60" x 78") (20x only)
- Dual Bedside Nightstand Nooks w/ Outlets & USB/USB-C Charging Ports
- Two Storage Drawers Under Sofa (20x only)
- Four Storage Drawers Under Bed (23x, 24x, 25x, 26x)
- Matching Comforter & Two-Pillow Package
- Dual Reading Sconce Lights w/ USB Charging
- Dual Wardrobes w/ Clothing Rod & Drawers
- TV Prep (24x, 25x, 26x)
- Bedroom Fan w/ A/C Prep (24x, 25x, 26x)
- Overhead Storage Cabinets
- Room Divider (23x only)
Double Bunk Hideaway (24x Only)
- Two Bunk Spaces w/ Double Mattresses (47" x 74")
- Privacy Curtains
- Hardwood Bunk Frame & Ladder
- Four Storage Drawers Under Bunks
- Top & Bottom Bunk Windows
- 110V Power Outlets & USB/USB-C Charging Ports at Both Bunks
Construction
- Designed and Warrantied for Full-Time RVing
- Brinkley Automotive Exterior Seals Package
- Low-Maintenance Roof
- 20-Year Roof Membrane Warranty & 25-Year Seal Warranty
- 5-Year Limited Tire Warranty w/ 1-Year No Questions Warranty
- 24/7 Roadside Assistance for 12 Months
- Basement Utility Access w/ Removable Sliding Doors & Motion-Activated Lights
- Automotive-Style Riveted Wheel Skirts & Panels
- Reinforced & Walkable Slide Roofs
- Thermaflex® No Kink No Tear Heat Ducts
- Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled & Color Coded
- Water Shutoff Valve on All Fixtures
- Brass Plumbing Fittings
- Insulation Package:
- R40 Roof
- R9 Walls
- R40 Floor
- Double Insulated Roof, Front Cap & Main Floor
- Heated & Enclosed Underbelly with Circulated Forced Air
- Insulated Slide-Out Floors
- Every Coach Every Time Pre-Delivery Testing & Inspection Process:
- 350+ Point Inspection & Testing Process
- Off-Road Simulation Tested
- Complete Unit Pressure Test for Seals, Gaskets, Slide-Outs & More
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
